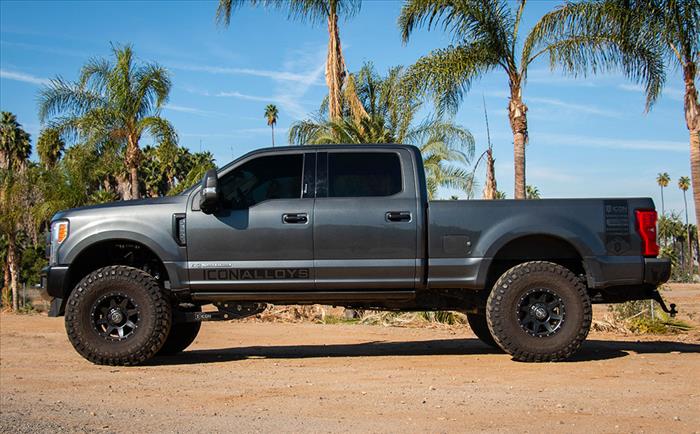

ICON 17-22 Ford F250/F350, 4-5.5" Lift Stage 6 Suspension System, w/Radius Arm

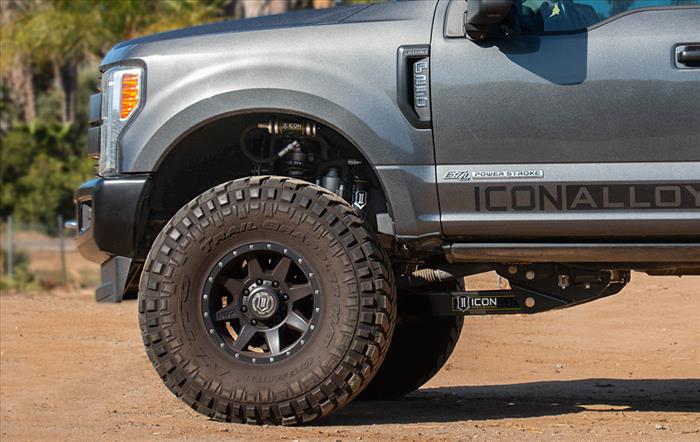

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

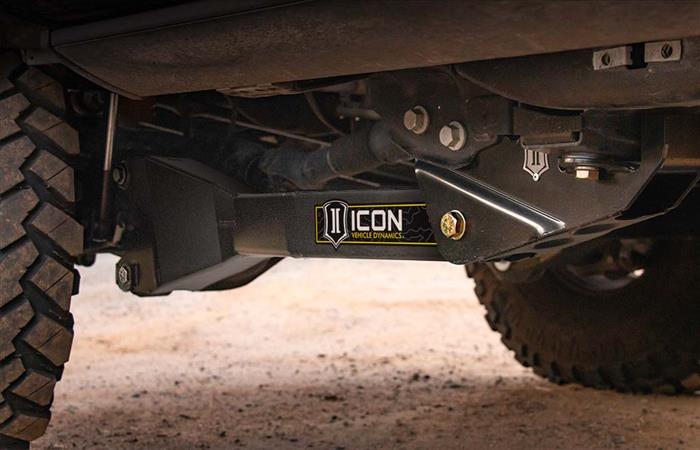

This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features & Benefits:

• Bolt-in system fits in OE coil bucket location
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

NOTES:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
• APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
• TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
• TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
• TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
• Ships in multiple boxes

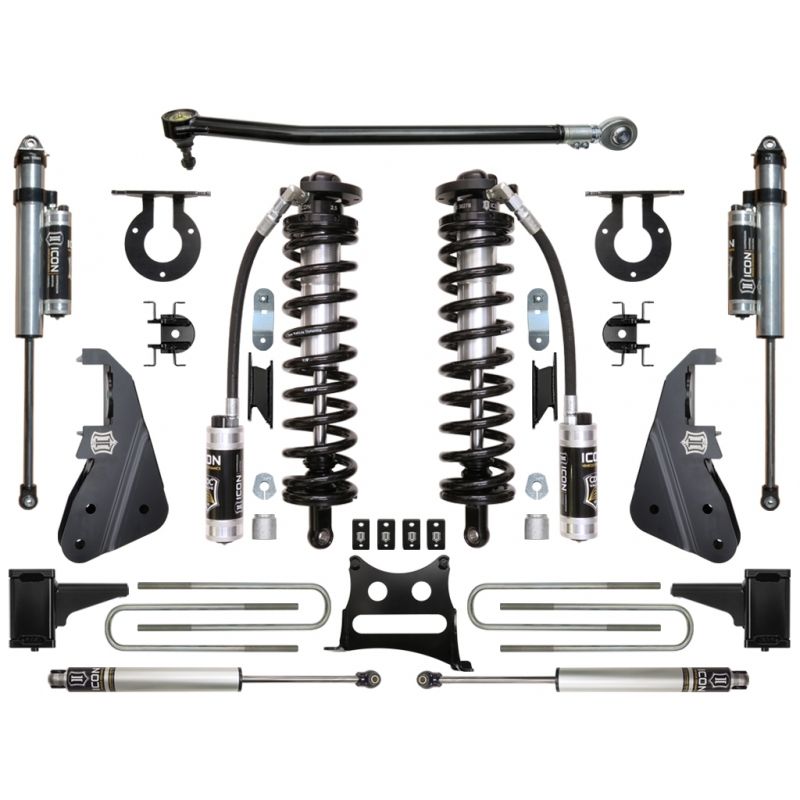

KIT COMPONENTS:

• 64050 (QTY: 1) | 08-22 FSD FRONT 4.5" BOX KIT
• 61721C (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT
• 67710CP (QTY: 1) | 05-22 FSD 4WD 4.5" FRONT 2.5 VS PB CDCV PAIR
• 64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
• 64041 (QTY: 1) | 05-22 FSD RADIUS ARM SYSTEM
• 64055 (QTY: 1) | 17-22 FSD RADIUS ARM DROP KIT
• 65000 (QTY: 1) | 05-22 FSD DUAL STABILIZER KIT
• 36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
• 195275 (QTY: 1) | 99-24 FSD 5" BLOCK KIT
• 67002 (QTY: 1) | 11-24 FSD REAR 17" U-BOLT KIT
• 37701CP (QTY: 1) | 99-24 FSD 3-6" REAR 2.5 VS PB CDCV PAIR

ICON 17-22 Ford F250/F350, 4-5.5" Lift Stage 6 Suspension System, w/Radius Arm | SKU: K63156R
