Description
Description

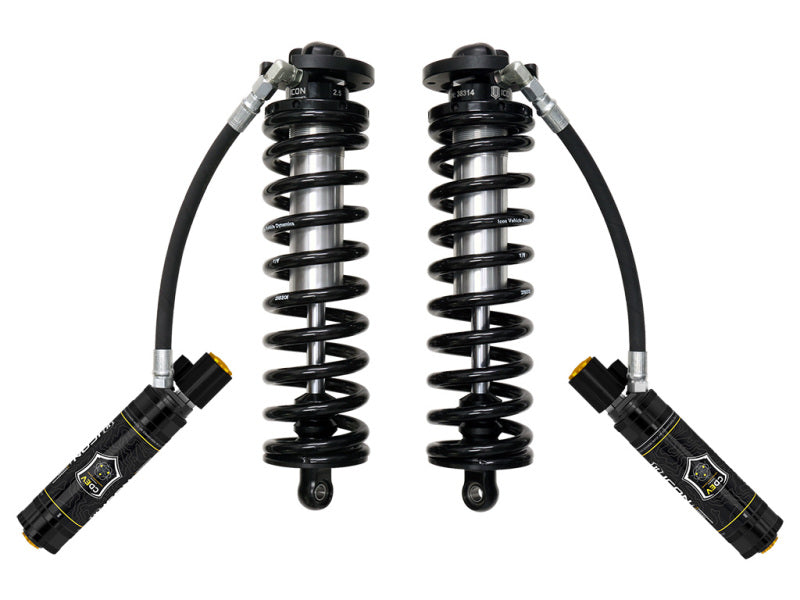

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2024 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Features & Benefits:
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers (2.5-3" or 3.25-3.75” depending on year of vehicle)
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Coilover conversion allows for addition of optional secondary shocks
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- ICON engineered coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
NOTES:
- OE Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: Only compatible with 4WD models
- TECH NOTE: Removal of the coil centering cup in factory coil bucket required for installation
- TECH NOTE: 2017-2022 Super Duty models also require installation of IIC part number 93500 and CDEV rear shock part number 37705EP
- TECH NOTE: 2023-2024 Super Duty models also require installation of IIC part number 93502 and CDEV rear shock part number 37705EP
- TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
- TECH NOTE: 2017-2019 Super Duty diesel models will have front lift height range of 2.5-3" over stock
- TECH NOTE: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 3.25-3.75" over stock
- TECH NOTE: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
- TECH NOTE: 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
- TECH NOTE: 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
- TECH NOTE: 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
- TECH NOTE: 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
- TECH NOTE: Will not fit 2024 models
- TECH NOTE: Brake line kit (Part # 61111) is optional for end users with 2017-2023 F-250/F-350 who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
- TECH NOTE: If installing with ICON 2.5 Aluminum Series CDEV remote reservoir secondary shocks part number 191207 is also required
- TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD, 2.5” Lift, 2.5 VS Remote Reservoir w/ CDEV Coilover Conversion Kit | SKU: 61720E
