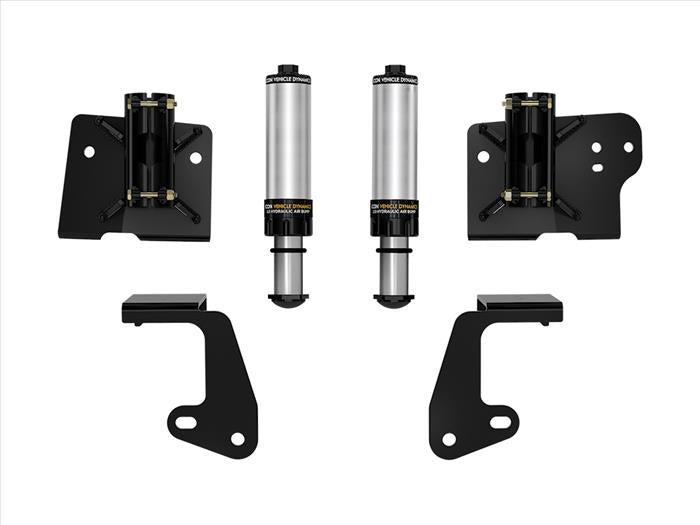

ICON 2022-2024 Toyota Tundra, Rear Hydraulic Bump Stop Kit, 3-5" Lift
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.
Description
Description
While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2024 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won't negatively affect articulation.
This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound. This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.
features & Benefits
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- Fully reversible to factory configuration with no bed cutting required
- 2.5? travel bump stop reduces rear end kick and improves overall performance
- Position and velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tunes to provide smooth engagement and best ride quality
- Heavy duty CNC machined nitro steel shaft
- Multistage CAD plated body for maximum corrosion resistance
- Double sealed high pressure Schrader valve
- Replaceable noise reducing striker pad
- Fully serviceable
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- TECH NOTE: Compatible with 3-5" of rear lift on models equipped with rear coil springs without TRD package.
- TECH NOTE: Compatible with 3-4.5" of rear lift on models equipped with rear coil springs with TRD package, or TRD Pro.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- TECH NOTE: Compatible with ICON 6" Lift Performance Suspension System. For shorter lift height compatibility, use part number 56111.
56115
