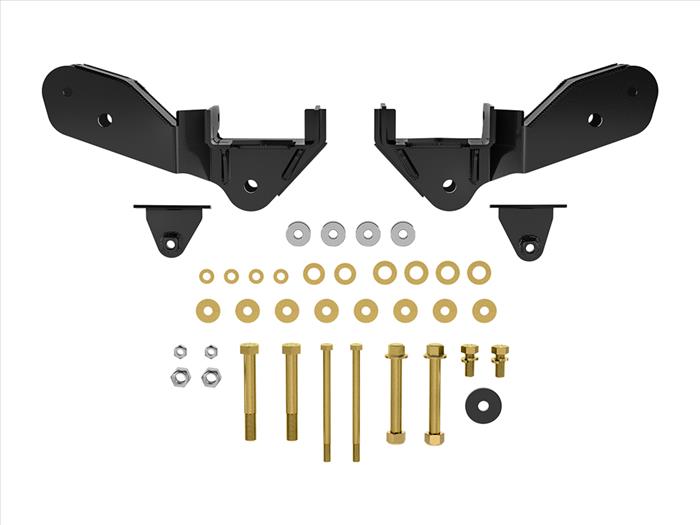

ICON 23-24 Ford F-250/F-350 Super Duty 4WD 4-Link Frame Bracket Kit

The 4-link bracket kit is an essential component of the ICON 2023-2024 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

Features & Benefits:

• 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
• Improves front end articulation and overall drivability
• Allows on-vehicle caster adjustment via ICON double adjusters in lower links
• Brackets are fabricated from CNC laser cut and brake-formed steel plate
• Corrosion resistant semi-gloss black powder coat finish
• 100% Bolt-on system - no cutting or welding necessary for install
• Fabricated components covered under ICON's Limited Lifetime Warranty

NOTES:

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: Up to 37" x 12.50"
• TECH NOTE: Only fits 2023 Ford Super Duty 4WD models
• TECH NOTE: Compatible with 2.5"-7" of front lift
• TECH NOTE: Requires ICON 4-Link Arms Part numbers 64052 & 164502 to complete installation.

ICON 23-24 Ford F-250/F-350 Super Duty 4WD 4-Link Frame Bracket Kit | SKU: 64053
