Description
Description
JEEP Wrangler JK EVO Double Throw Down
EVO SPEC KING Coilover Bypass Shocks

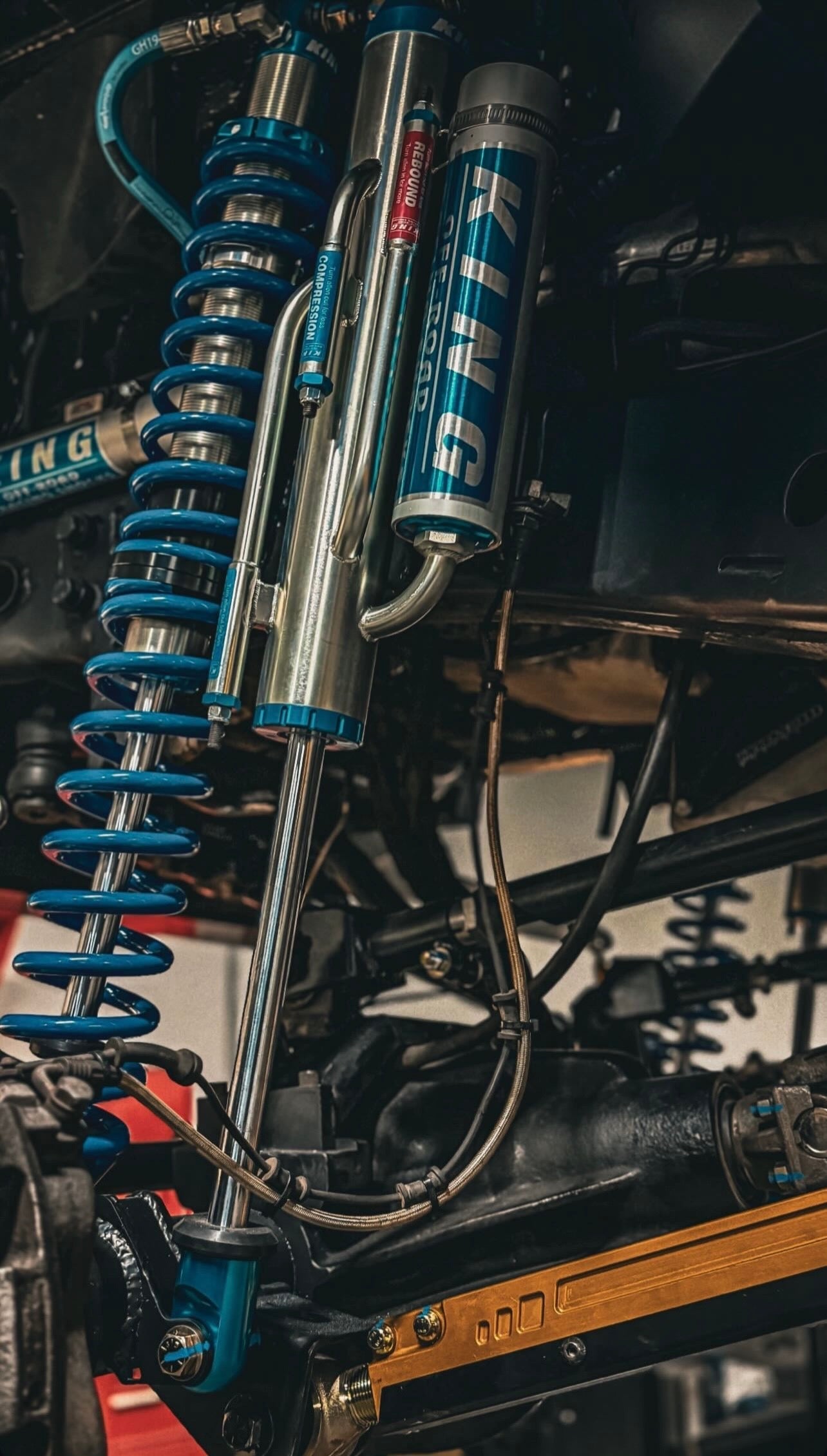

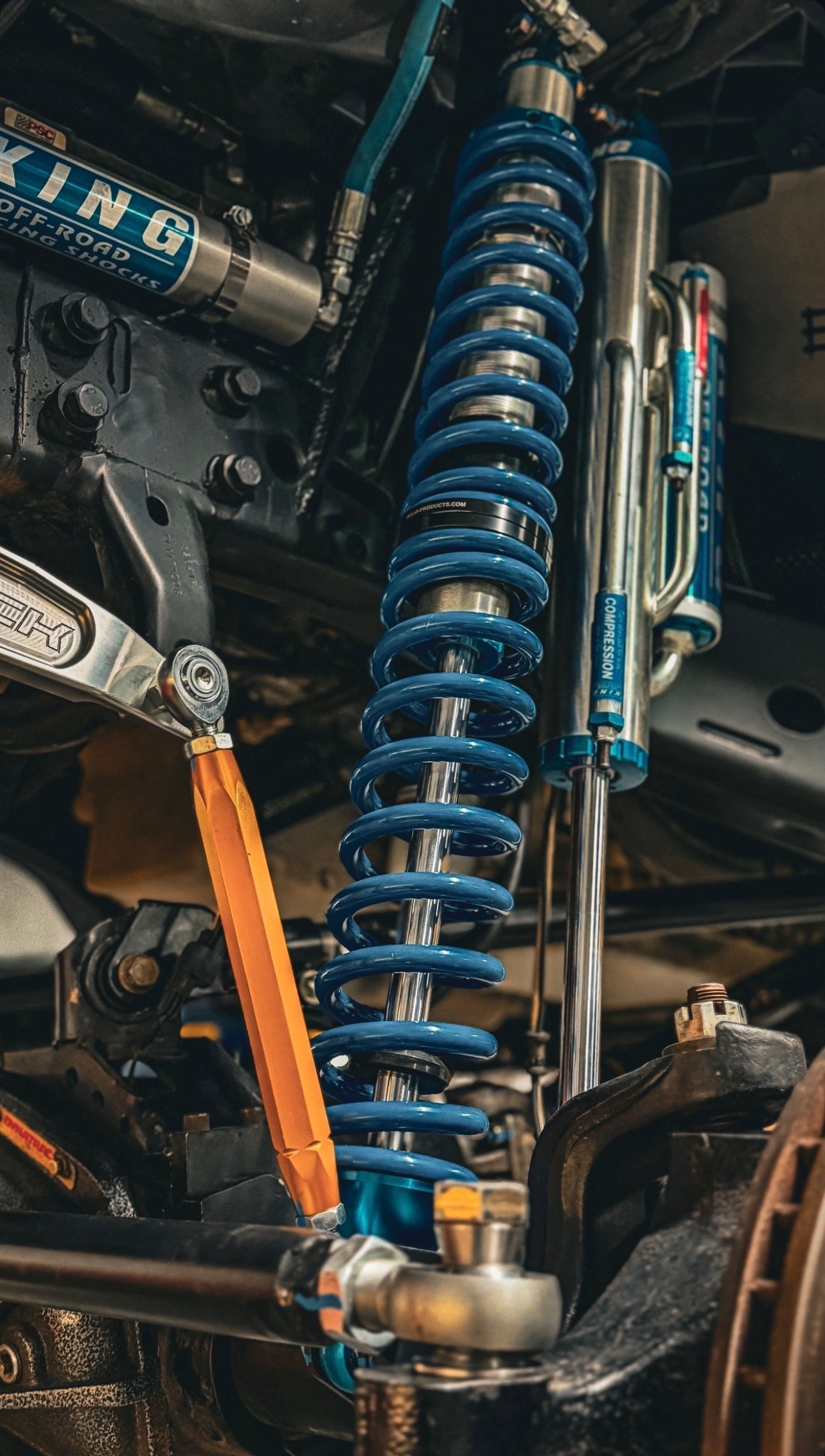

Front: EVO Double Throw Down System is engineered for the guys who like to go fast. This system utilizes a coilover similar to our EVO SPEC Front Bolt on Coilover system and has the same added benefits, as well as an additional bypass shock each corner. With the addition of a bypass shock you have full external adjustability of the damping and “zones” within the shock stroke that allow the system to be position sensitive. This system gives your suspension up to 14" of vertical wheel travel specifically tuned for the Jeep JK.
Coilover/Bypass shocks (Comes complete with EVO SPEC King Shocks)
All bracketry made from laser cut 3/16” steel and CNC bent for optimum precision
Adjustable ride height without the need for changing parts
Engineered and tested to pair with the EVO Rear Double ThrowDown
Compatible with 2007+ Jeep Wrangler JK (2 and 4-door models)

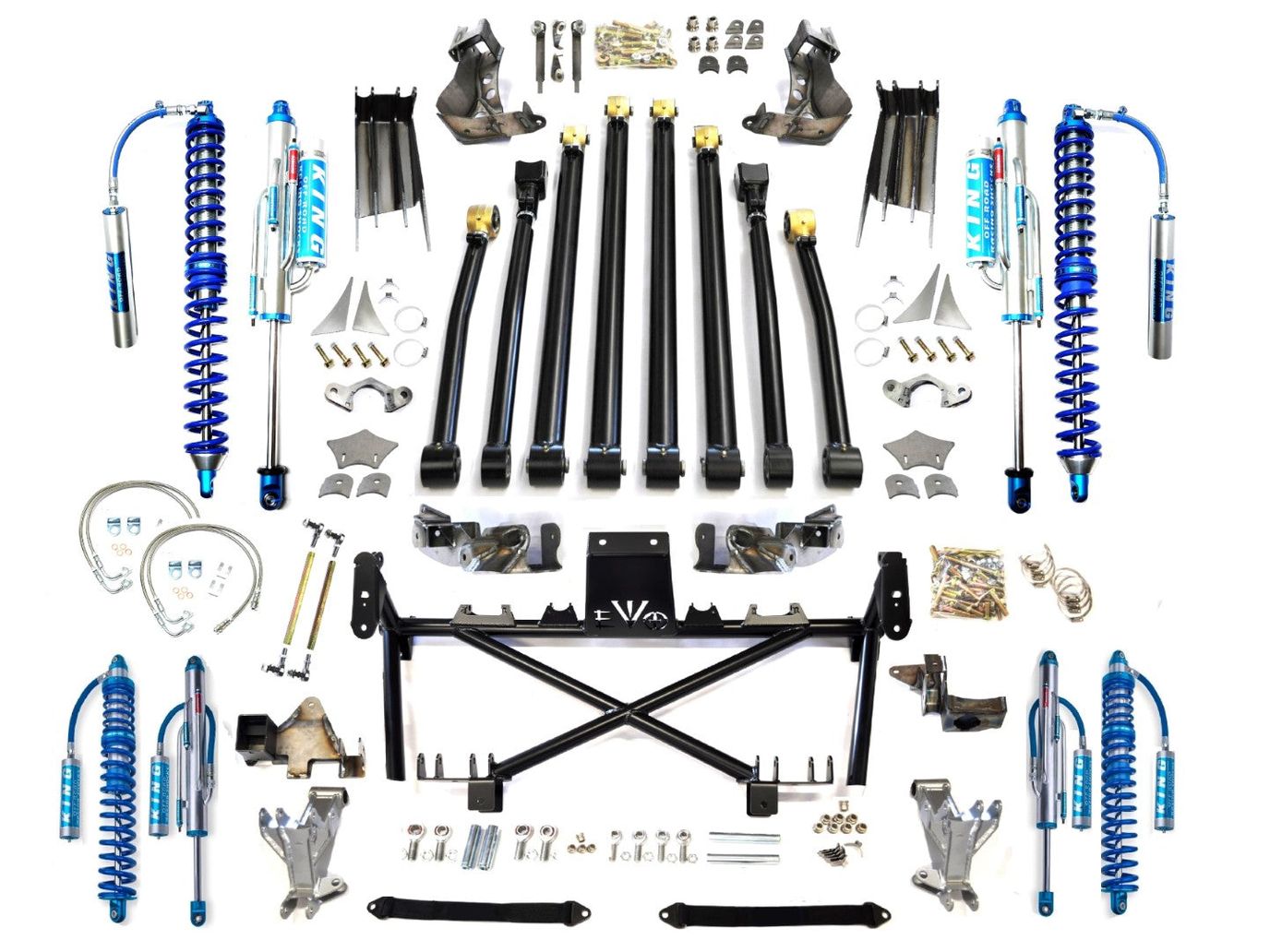

This Complete system uses: 2.0 Diameter EVO Spec Remote Reservoir Coilover by King Shocks 2.5″ Diameter EVO Spec Remote Reservoir by King Shocks 3-Tube Bypass
All shocks purchased with our kit come with EVO Spec Proprietary Spring Rates and Valving.
Notes:
High Clearance Fenders Recommended
Front Aftermarket CV Driveline is required for proper installation and is not included with kit.
Wheel backspacing adjustments may be required. Due to so many variations and combinations of ACTUAL tire sizes, wheel widths, tire inflation presures etc.
Rear:
JK Rear Double ThrowDown EVOLever System (W/ Coilover & Bypass)

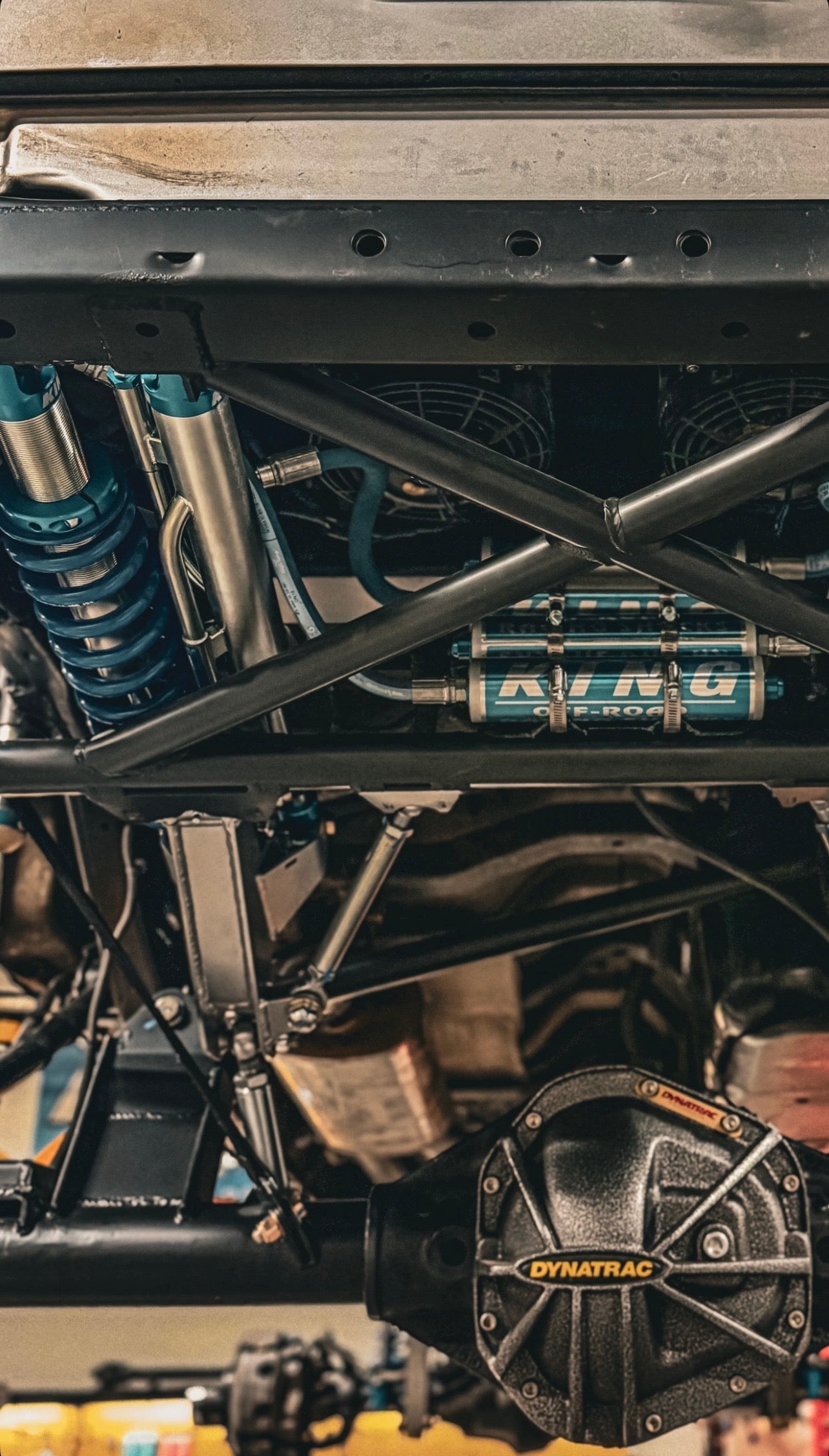

The rear EVO Double ThrowDown System is engineered for the guys who like to go fast. This system utilizes a coilover just like our EVOLever and has all the same added benefits, aswell as an additional bypass shock each corner. With the addition of a bypass shock you have full external adjustability of the damping and “zones” within the shock stroke that allow the system to be position sensitive. This system gives you 14″ of positions sensitive damping without the need for cutting holes in the body of your Jeep.
Fits all Jeep Wrangler’s 07+
2 Door and 4 Door
Allows the uses of long travel coilover and external bypass shocks in the rear of your JK without the need for doing any major cutting. Absolutely no cutting of the body.
Offers up to 14” of vertical wheel travel.
Optimizes Long Arm suspension system, from every manufacturer without modification.
Offers the maximum amount of ground clearence with 14″ travel.
All key components fully protected and above axle at all times.
Adjustable ride height
Four Ply limit straps included.
¾ inch chromoly heim joints.
Stainless steel misalignments
Grade 8 hardware
Allows for use of 35” up to 42” tires (Larger than 37: Body Trimming required).
Notes:
High Clearance Fenders Recommended
Exhaust modifications required
EVO Manufacturing is now shipping the rear Double Throw Down sub frames with the bushing and pivot points preassembled and lubricated .This simple process will help ease the install and insure proper set up of the pivot points. Now the installer will be able to install this product faster which means you can enjoy all these great benefits sooner.
LONG ARM LOWER CONTROL ARM OPTIONS:
EVO Manufacturing offers the option of DOM steel tube lower control arms or the upgrade of billet aluminum ENVY Link lower control arms with replaceable steel skid plates. ENVY Links have the option of being raw aluminum or gold anodized.
*DOM STEEL TUBE LOWER CONTROL ARMS
2.0 x .25 WALL DOM STEEL TUBE LINKS POWDER COATED BLACK
*ALUMINUM ENVY LINKS:
BILLET ALUMINUM WITH REPLACEABLE STEEL SKID PLATES
OPTIONAL RAW ALUMINUM OR GOLD ANODIZING
INSTALLATION TIME 8-10 HOURS
The EVO MFG High Clearance PRO Long Arm Upgrade kit features the EVO MFG Adjustors, full on car adjustability of control arm length, proven Currie Johnny Joints are used on both ends of each arm, rebuildable, greaseable, and isolated construction for decreased transmission of road vibrations, the ability to retain the factory high clearance transmission cross-member, (welding required)
Notes:
High Clearance Fenders Recommended. Suspension system fits all year and model Jeep Wrangler JK/JKUs
2Door JK: Front (or exhuast spacer kit) and rear aftermarket driveshaft required. (not included)
4Door JKU: Front aftermarket driveshaft or exhaust spacer required, rear driveshaft recommended. (not included)
Recommended wheel backspacing 3.75” or less (smaller backspacing #). Exhaust modifactions required on 2010+ JK/JKUs
INSTALLATION TIME 34-48 HOURS
EVO-204
