Description
Description
All sales are final on overstock items

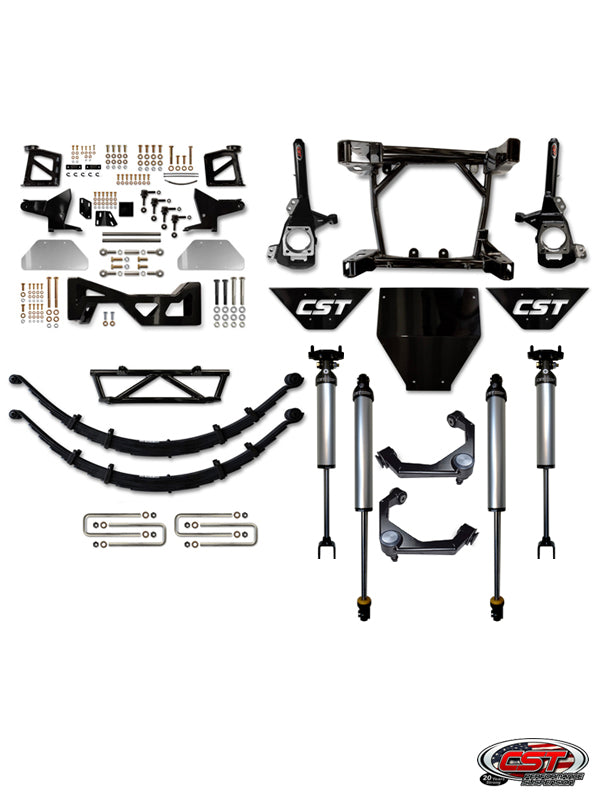

CSK-G24-14 8″ Stage 14 Suspension Includes the following parts:
CSS-C3-24-B1Â Â 1-PIECE SUB FRAME
CSS-C3-24-B2Â Â SPINDLES
CSS-C3-24-B3Â Â 1-PIECE DIFF DROP, SWAY BAR EXTENSIONS, HARDWARE
CSU-C15-11HDÂ Â REAR U-BOLT KIT FOR REAR LEAFS
CSL-C19-5Â Â SOFT RIDE REAR LEAF SPRINGS
CSA-7302  2.5″ DIRT SERIES EMULSION FRONT SHOCKS
CSA-7303  2.5″ DIRT SERIES EMULSION REAR SHOCKS
CSS-C2-20Â Â BALL JOINT UPPER CONTROL ARM WITH OE STYLE BUSHING
OPTIONAL ITEMS:
CSS-C24-19Â Â HEAVY DUTY TIE ROD ENDS
CSS-C29-26Â Â ALUMINUM SKID PLATE
CSP-C28-8Â Â FRONT DRIVESHAFT
Â
NOTES
CSL-C19-5 ARE SOFT RIDE REAR LEAF SPRINGS, NOT DESIGNED FOR TOWING. AIR BAGS RECOMMENDED
CSP-C28-8 NEEDED FOR 4WD TO WORK
WHEEL AND TIRE FITMENT:
5″ MAX BACK SPACING
WHITE TRUCK SHOWN WITH 38-13.5 24×12 W/ 4.75BS
GRAY TRUCK SHOWN WITH 40-15.5 20×9 W/ 5″ BS
BOTH REQUIRED MINOR TRIMMING
Â
Description
CST is proud to announce the all new 8″ Suspension System for the 20-22 Chevy & GMC HD Trucks. This new kit will provide superior performance on or off road. 1-Piece Sub frame are designed to give you the most ground clearance while protecting vital front suspension components. The front spindles welded and fabricated from laser cut and precision materials. All of CST products are precision fabricated in house to provide strength and durability. CST Performance Suspension products are designed and manufactured in the USA!
WHEEL AND TIRE FITMENT:
5″ MAX BACK SPACING
WHITE TRUCK SHOWN WITH 38-13.5 24×12 W/ 4.75BS
GRAY TRUCK SHOWN WITH 40-15.5 20×9 W/ 5″ BS
BOTH REQUIRED MINOR TRIMMING
Â
NOTES
CSL-C19-5 ARE SOFT RIDE REAR LEAF SPRINGS, NOT DESIGNED FOR TOWING. AIR BAGS RECOMMENDED
CSP-C28-8 NEEDED FOR 4WD TO WORK
Â
Â
CST 20-22 Chevy / GMC HD 2500 / 3500 4wd 8″ Stage 14 Suspension System | SKU: CSK-G24-14
