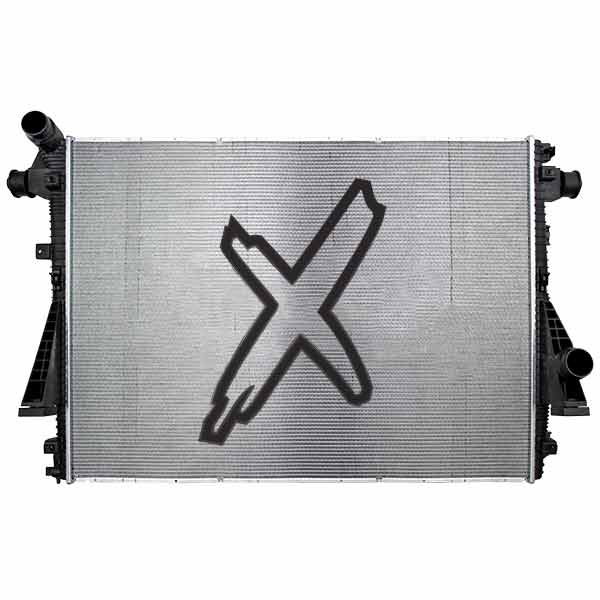

Replacement Main Radiator 11-16 Ford 6.7L Powerstroke 1 Row XD291 X-Tra Cool XDP

This Part Fits:

Specifications:

Replace the failing main radiator in your 2011-2016 Ford 6.7L Powerstroke with the XDP X-TRA Cool Direct-Fit Replacement Main Radiator XD291. Made for a bolt-on installation, XDP's X-TRA Cool Direct-Fit Radiators feature multiple upgrades for added strength over your OEM unit.

Manufactured using special techniques from the HD and Semi industry, the X-TRA Cool Radiators are built to a higher standard and provide you with added protection and reliability. The XD291 is the main radiator located on the engine side of the core support for your primary cooling system. The primary system cools your engine and engine oil cooler.
High Efficiency Core
XDP's X-TRA Cool Radiators are built with High-Efficiency Cores. The upgraded core has more fins per inch with heavy-duty tubes to maximize cooling efficiency in your truck.
Internal Reinforcements
Built with special brazing techniques, the X-TRA Cool Radiators feature internally reinforced end tubes and construction techniques to provide additional strength at the outside corners where the core is most vulnerable.
Special Gasket Design
To allow for expansion, contraction, and to handle the flex in the front end of your truck X-TRA Cool Radiators are built with a proprietary rubber gasket to increase durability and eliminate failure points found in the OE design.
Revised End Tanks
Revised Tanks add strength to the X-TRA Cool Radiator. Paying special attention to the weak points, reinforcement ribs have been added to increase durability. In addition, the plasitc mix used to manufacture the end tanks includes a fiber reinforcement to add strength.
Upgraded Mounting Points
To allow secure mounting in the factory location, and eliminate mounting point failures, the X-TRA Cool Radiators integrated mounting points have been strengthened for durability.
Tank Attachment
Unlike the OEM design, X-TRA Cool Radiator End Tanks are attached with a heavy gauge steel crimp strip. Instead of using aluminum like the factory, the heavy duty crimp eliminates tank and core separation failures that are common with the factory radiator.
Features:

• Direct-Fit
• Upgraded Design For Increased Durability
• High-Efficiency Core To Maximize Cooling

XD291 Specifications:

• Row Quantity: 1
• Core Width: 38-3/8 inch
• Core Height: 27-3/4 inch
• Core Thickness: 1-5/8 inch
• Inlet Connection: 2-1/4 inch
• Outlet Connection: 2-1/4 inch
• OEM Part BC3Z8005E, BC3Z8005K

Application Note:
This is the replacement for the main (primary) radiator only.
Warranty Info:
Products manufactured by XDP carry a 1-Year warranty against defects in materials and craftsmanship. The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product's kit.
