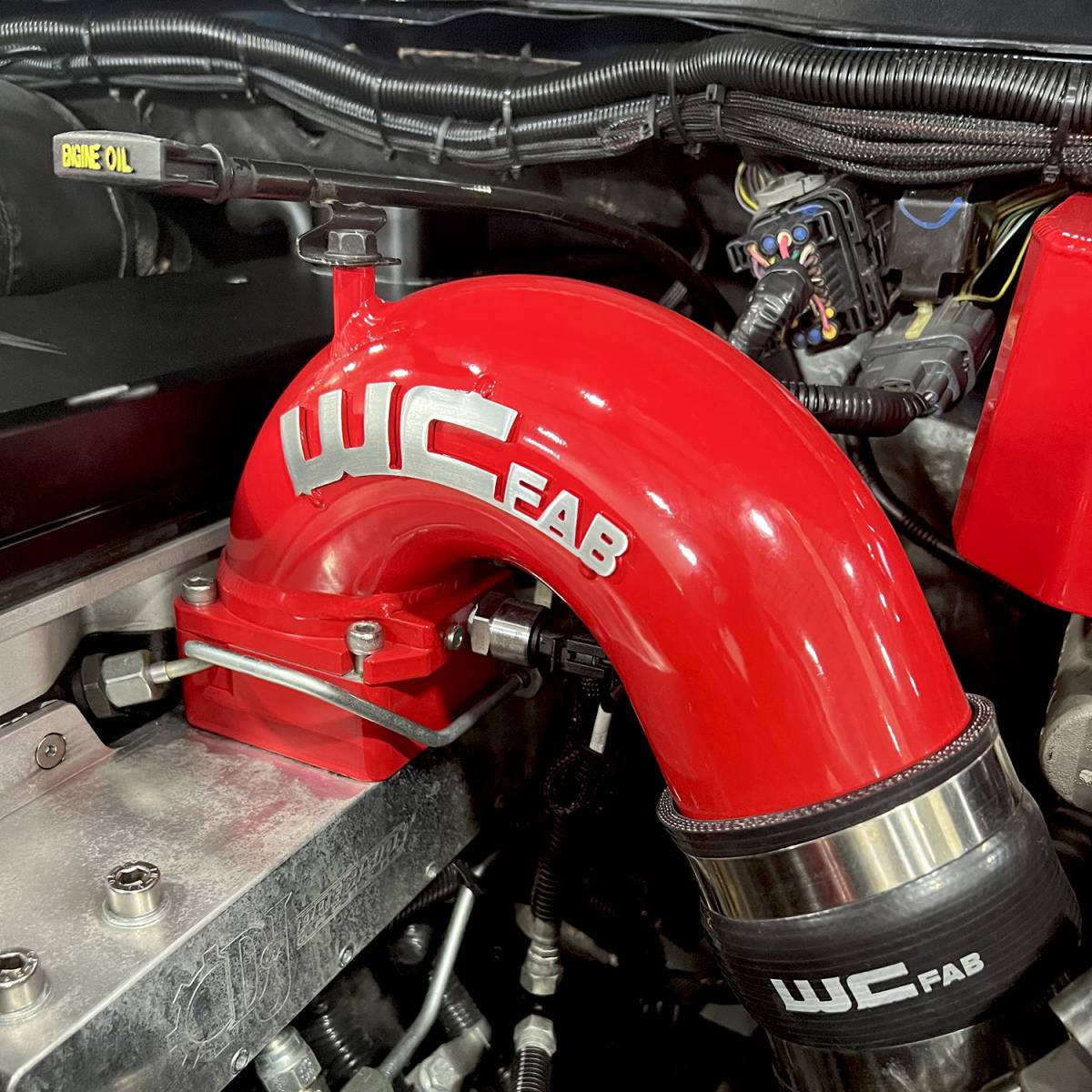

The factory cast intake horn on a 2003-2007 Ram 2500/3500 5.9L Cummins necks down to less than 1.5" wide, and the plastic intercooler pipe feeding it is a known failure. The Wehrli 3.5" High Flow Intake Horn & Driver Side Intercooler Pipe Kit (Manufacturer Part # WCF100528) replaces both with 14 gauge aluminum — 60% greater flow than stock.
Why Choose the Wehrli High Flow Intake Horn & Intercooler Pipe Kit?
- 60% more flow than stock – Wehrli's own figure, and it comes from fixing the worst restriction on the engine: a horn that pinches to under an inch and a half.
- Full mandrel bent 3.5" elbow – smooth radius bends replacing the cast OEM horn entirely.
- Deletes the failure-prone plastic pipe – 3.5" heavy duty 14 gauge aluminum in its place.

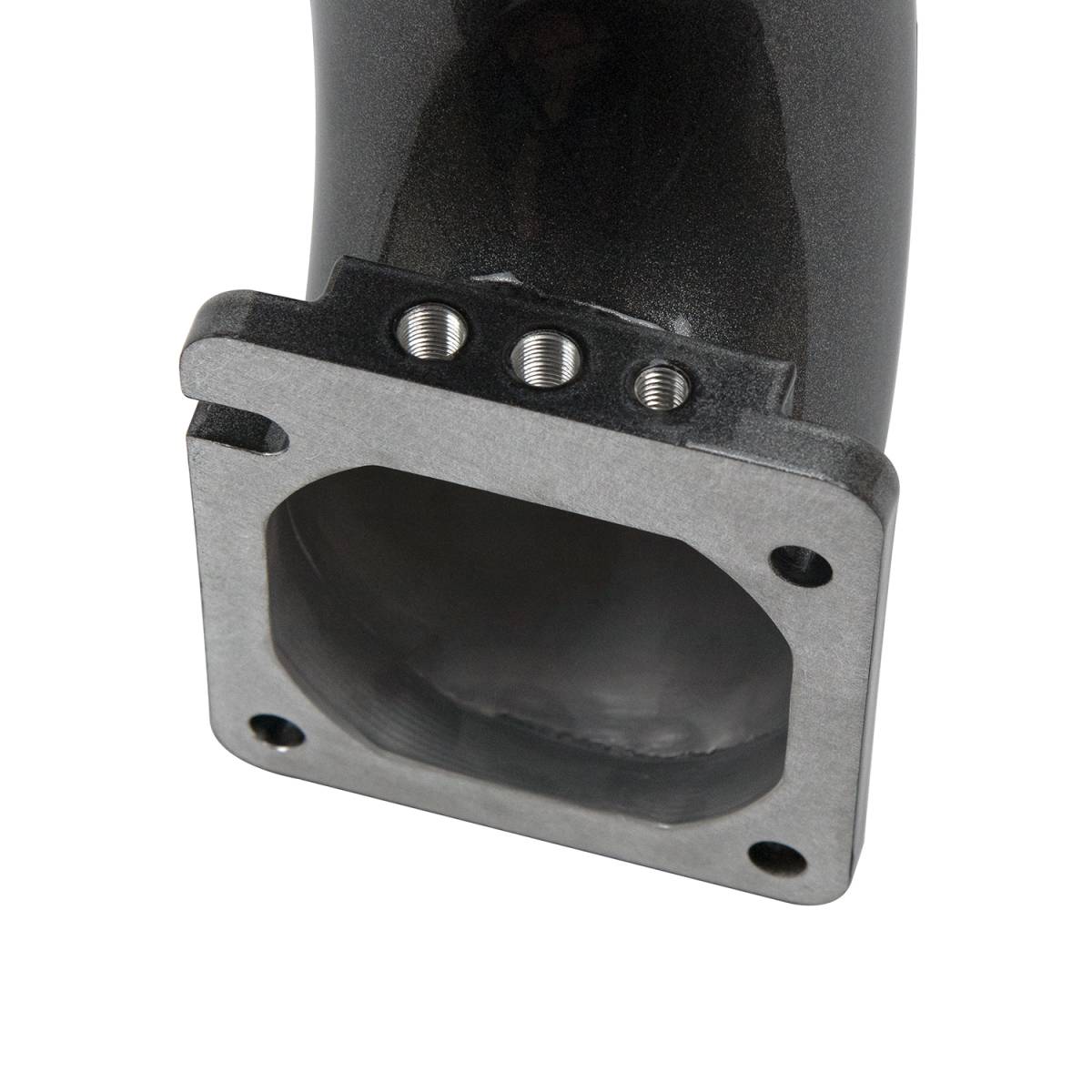

- CNC machined mounting flange – matches the WCFab Billet Intake Spacer plate for the cleanest possible transition into the cylinder head. New hardware included.
- Two 1/8" NPT ports built in – boost pressure gauge, water-methanol injection, or whatever else you are running. No drilling and tapping later.
- Keeps your dipstick and harness where they belong – a threaded bung for the oil dipstick tube and an 8mm port for the wire harness isolation clamp, so nothing is left dangling.
- Five-ply silicone boots and stainless T-bolt clamps – at both the intercooler and the horn.
- No tuning required – bolt on. Made in the USA.

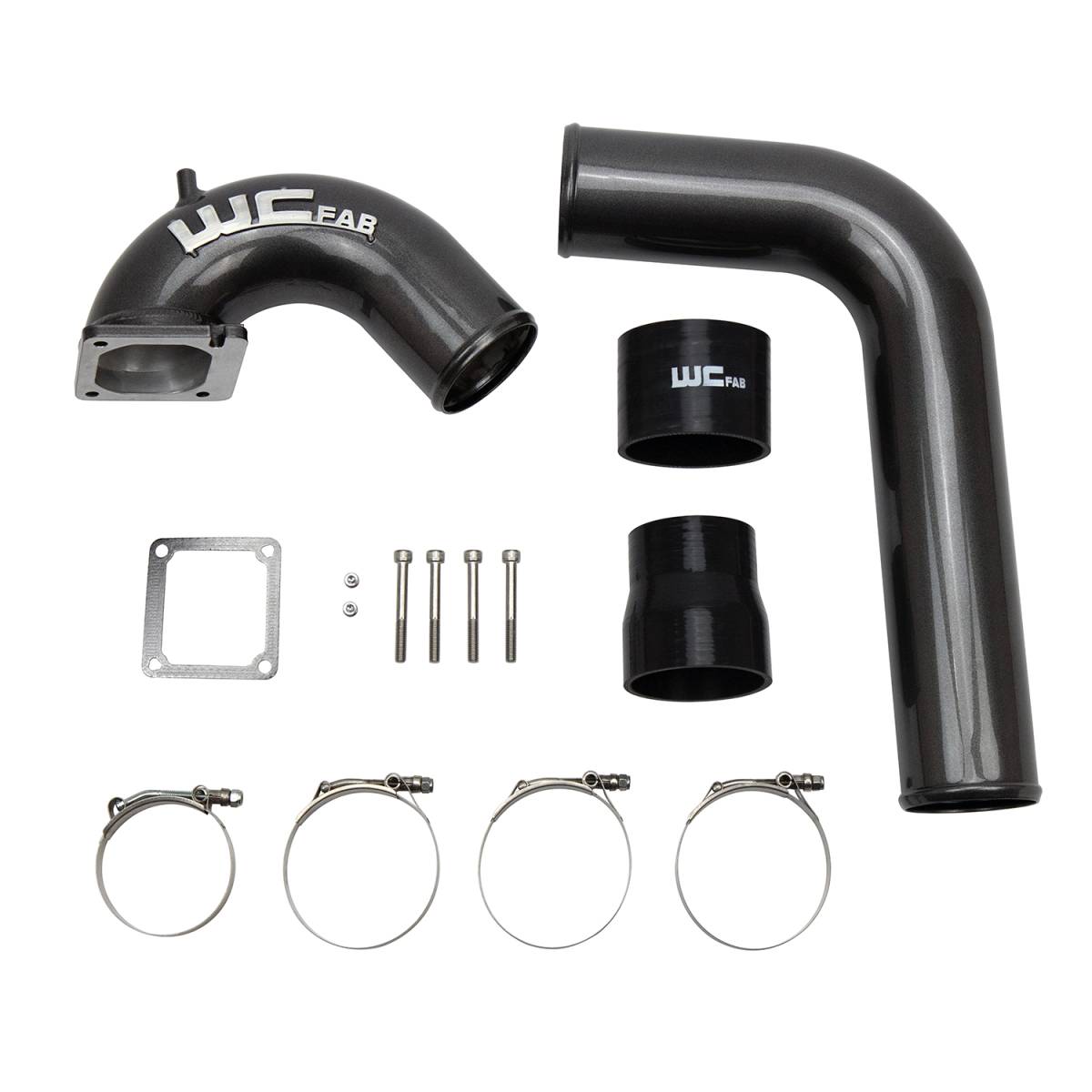

Kit Includes
- 3.5" high flow intake horn with CNC machined aluminum mounting flange
- Matching 3.5" driver side intercooler pipe, 14 gauge aluminum
- Intake gasket
- Five-ply silicone boots
- Stainless steel T-bolt clamps
- Mounting hardware
Fits These Models
2003, 2004, 2005, 2006 and 2007 Dodge Ram 2500 and 3500 with the 5.9L Cummins.
Specifications
- Horn and pipe: 3.5" diameter, 14 ga. aluminum
- Airflow: 60% greater than stock, per Wehrli
- Ports: 2x 1/8" NPT for boost reference or injectables, 8mm threaded port for the wire harness clamp
- Replaces MOPAR part numbers: 52028895AE, 52028895AC, 52028895AD, 5086828AA
- Finish: custom powder coat, color selected above
- Made in the USA
Key Features at a Glance
- 60% more flow than stock - the OEM horn necks to under 1.5".
- Horn and pipe together - both restrictions fixed in one kit.
- 2x 1/8" NPT ports - boost gauge or meth, built in.
- Dipstick and harness mounts retained - nothing left loose.
- No tuning required - bolt on.

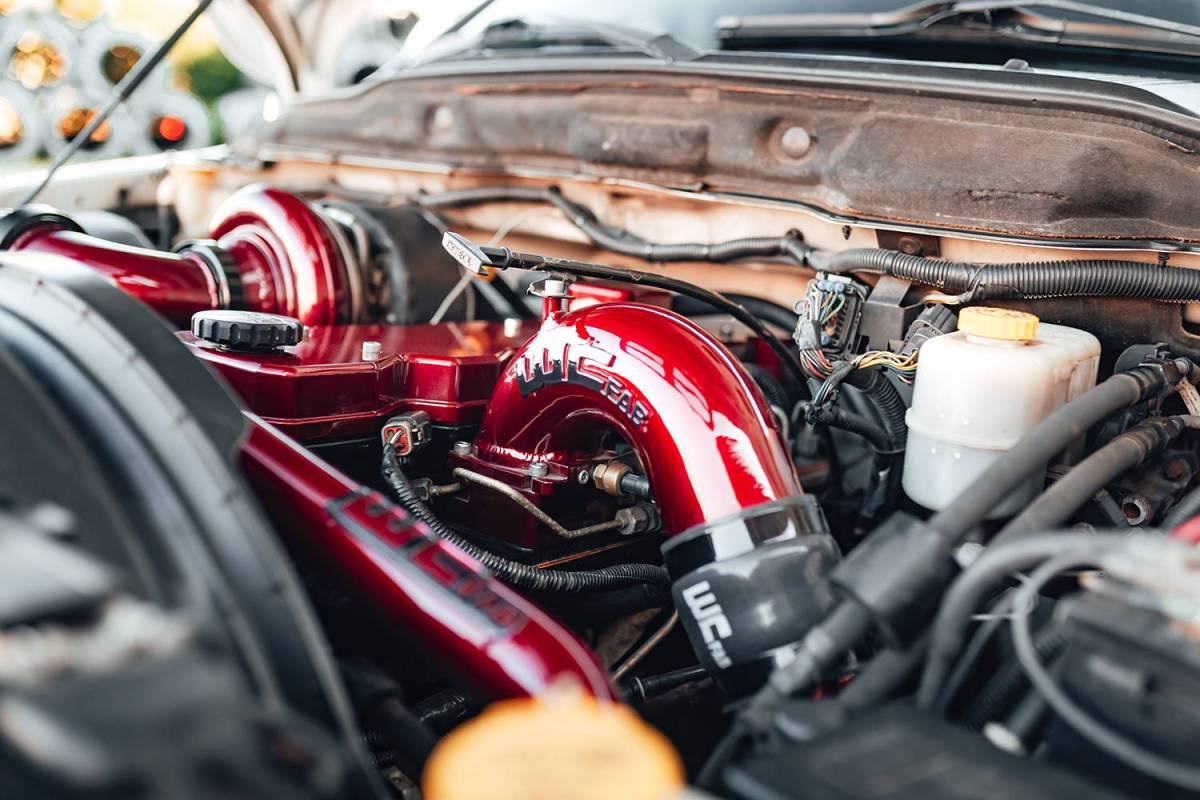

- Custom powder coat finish - pick your color above.
Notes
- ⚠ 2003-2004 trucks require trimming. This 3.5" horn is significantly larger than the stock piece, and its smooth radius bends mean the plastic shroud over the throttle assembly on these earlier trucks must be trimmed to fit. 2005-2007 trucks are unaffected.
- Best paired with the WCFab Billet Intake Spacer kit. The horn works with the OEM grid heater or other brands' high-flow intake plates, but the internal surfaces won't match as cleanly as Wehrli's own spacer.
- Lead time varies by color. WCFab Red, Bengal Red and Gloss Black with the standard brushed tag are stocked and ship in 3-5 business days. All other colors are made to order on a 10-15 business day lead time.
FASS SKU: [ADD FASS SKU]
Manufacturer Part #: WCF100528
Questions? We’re Here to Help.
Have questions about upgrades for your 5.9L Cummins? Contact FASS Motorsports and we’ll get you dialed:
Phone: 636-429-7020
Email: info@fassmotorsports.com
This part fits the following vehicles:
| Years | Make & Model |
|---|---|
| 2003, 2007 | Dodge Ram 2500 |
| 2003, 2007 | Dodge Ram 3500 |
Fitment is listed by year, make and model. Some applications also depend on cab, bed, drivetrain or engine — if you are not sure, call 636-429-7020 or send us your vehicle details and we will confirm before you order.
