The intercooler outlet on a 2006-2010 Chevrolet Silverado / GMC Sierra 2500HD/3500HD 6.6L Duramax LBZ and LMM is plastic, and on an aging high-boost truck it is a known failure point. The Wehrli 3.5" High Flow Intercooler Outlet Elbow Kit (Manufacturer Part # WCF100466) replaces it with fabricated 14 gauge aluminum and a CNC machined double O-ring flange. This is a build part — read the Notes before ordering.
Why Choose the Wehrli Intercooler Outlet Elbow Kit?
- Deletes the plastic outlet – the OEM connection gets brittle with age and lets go under boost. This is aluminum.

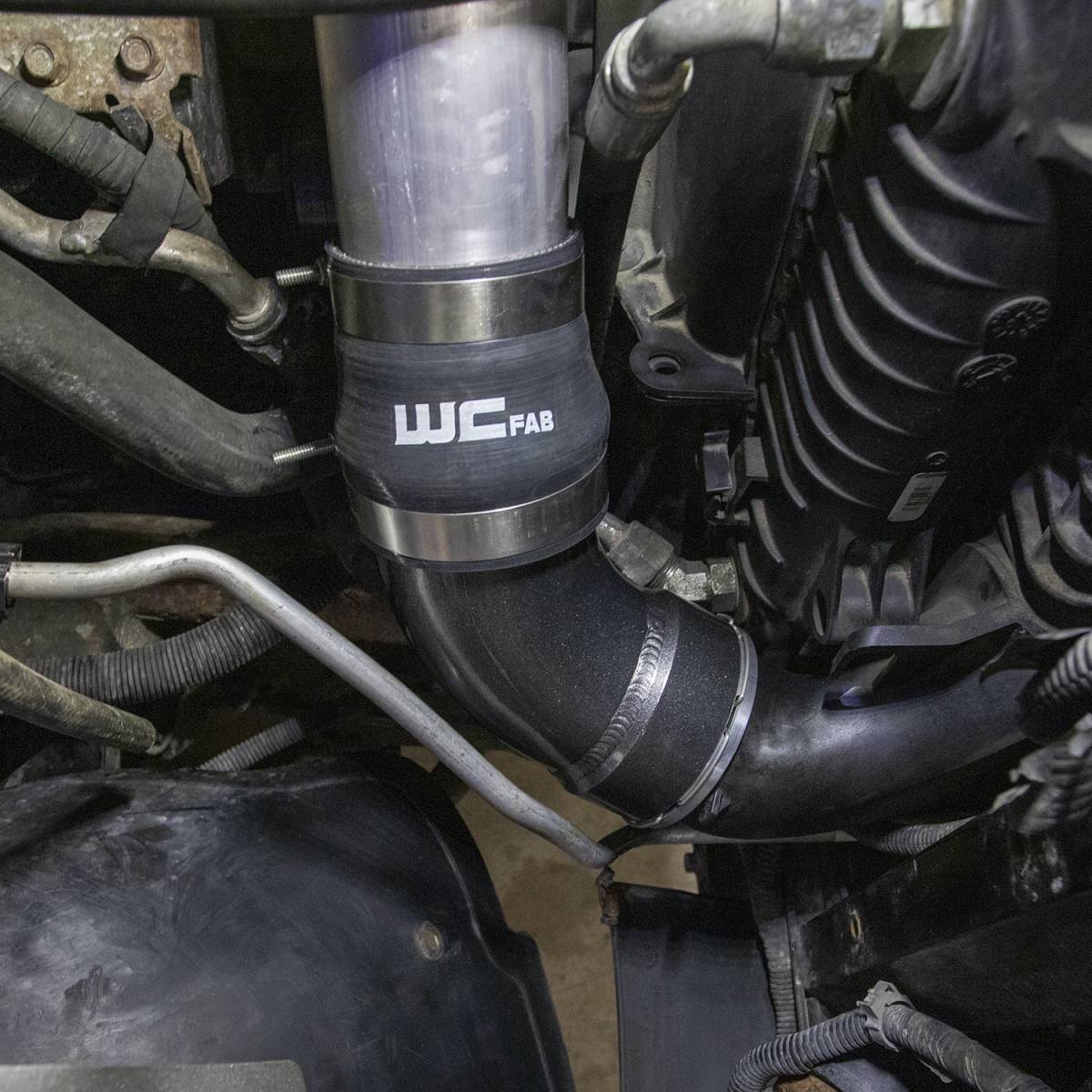

- CNC machined flange with double O-rings – an improved sealing surface at the intercooler, which is where the boost leaks start.
- New wire clip ring supplied – the intercooler flange clip is in the box, not reused.
- Heavy duty reducer boot – 3.5" to 3" silicone with stainless steel T-bolt clamps, rated well past factory boost.
- 14 gauge fabricated aluminum – built to match the rest of your WCFab plumbing in the same powder coat range.
- Made in the USA.
Kit Includes

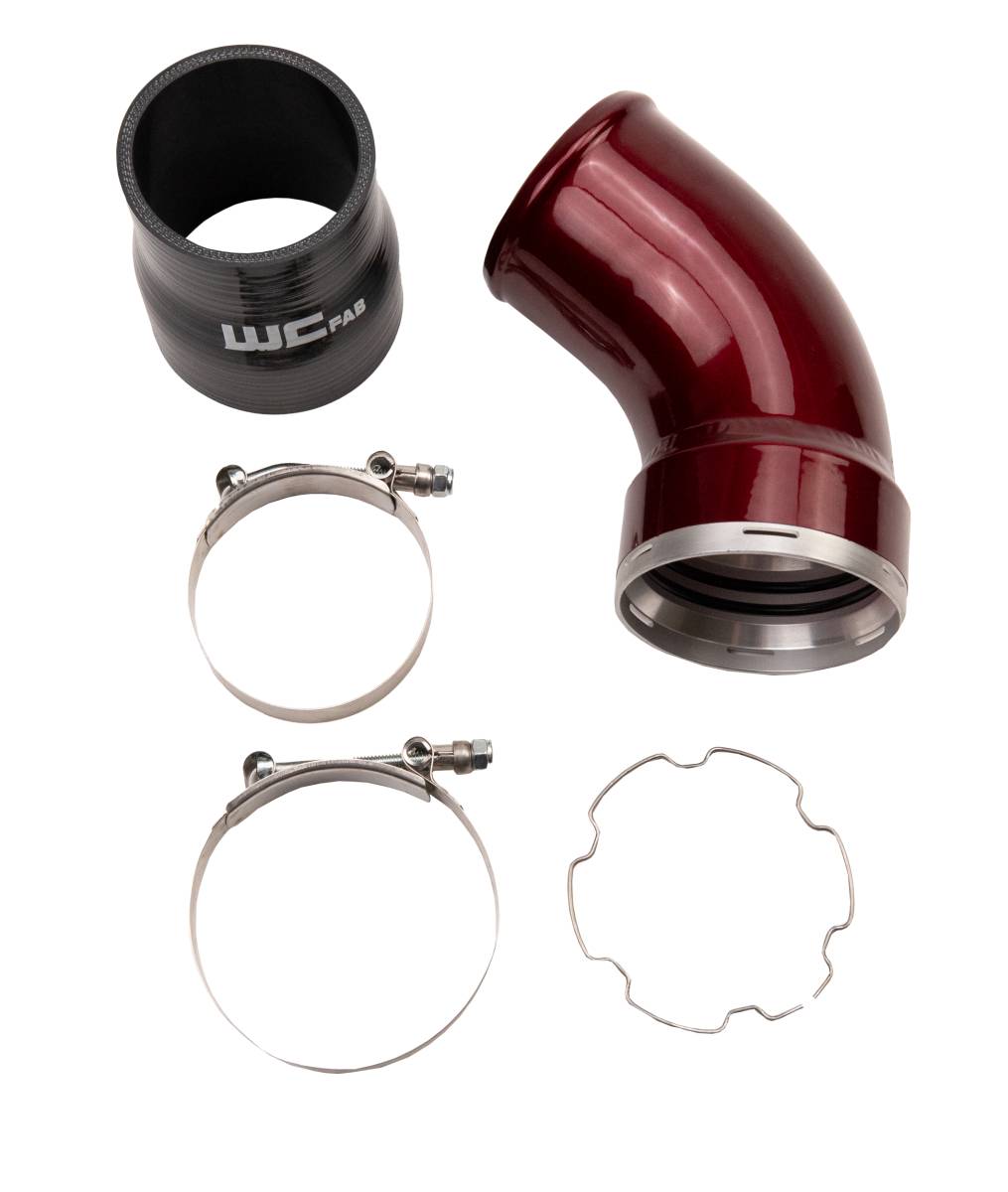

- 3.5" intercooler outlet elbow, 14 gauge aluminum
- CNC machined billet aluminum flange with double O-rings
- HD silicone 3.5" x 3" reducer boot
- Stainless steel T-bolt clamps
- O-rings
- New wire clip ring for the intercooler flange connection
Fits These Models
2006, 2007, 2008, 2009 and 2010 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD with the 6.6L Duramax LBZ or LMM.
Specifications
- Elbow: 3.5" diameter, 14 ga. fabricated aluminum
- Flange: CNC machined billet aluminum with double O-ring seal
- Boot: HD silicone 3.5" x 3" reducer
- Shipping weight: 5.0 lbs
- Package dimensions: 12" W x 6" H x 12" L, ships in its own box
- Finish: custom powder coat, color selected above
- Made in the USA
Key Features at a Glance
- Aluminum replaces plastic - at a known LBZ/LMM failure point.
- Double O-ring machined flange - eliminates boost leaks at the intercooler.
- New wire clip ring included - nothing reused.
- HD reducer boot and T-bolt clamps - holds real boost.
- Custom powder coat finish - pick your color above.
Notes
- ⚠ Not compatible with the OEM passenger / cold side intercooler pipe. This elbow is designed for aftermarket or custom fabricated high flow piping and turbo kits. If your truck still runs the factory cold side pipe, this will not connect — call us before ordering.
- Lead time varies by color. WCFab Red, WCFab Grey, Flat Black, Gloss White and Gloss Black are stocked and ship in 3-5 business days. All other colors are made to order on a 10-15 business day lead time.
FASS SKU: [ADD FASS SKU]
Manufacturer Part #: WCF100466
