The factory hot side pipe on a 2023-2026 Ford Super Duty F-250/F-350 6.7L Power Stroke High Output is a restrictive 2.5" design. The Wehrli 3" High Flow Hot Side Intercooler Pipe Kit (Manufacturer Part # WCF100308) replaces it with fabricated aluminum at a full 3", sealed with a CNC machined billet flange and double O-rings. High Output trucks only — see Notes.
Why Choose the Wehrli Hot Side Intercooler Pipe Kit?
- 2.5" to 3" – the OEM pipe is the restriction on the turbo outlet side, and this opens it up.
- Built for the HO engine specifically – not a universal pipe adapted to fit. The High Output trucks route differently, and Wehrli makes a separate part for them.
- CNC machined billet flange with double O-rings – a proper sealing surface instead of a spot that weeps under boost.
- Temperature sensor bung included – the factory sensor reinstalls into the new pipe, nothing relocated or unplugged.
- Upgraded silicone boot – rated past factory pressure and temperature, which is what stops boots blowing off on a tuned truck.
- New wire retaining clip and O-rings supplied – nothing reused.
- Custom powder coat – finished in your choice of Wehrli's colors. Made in the USA.

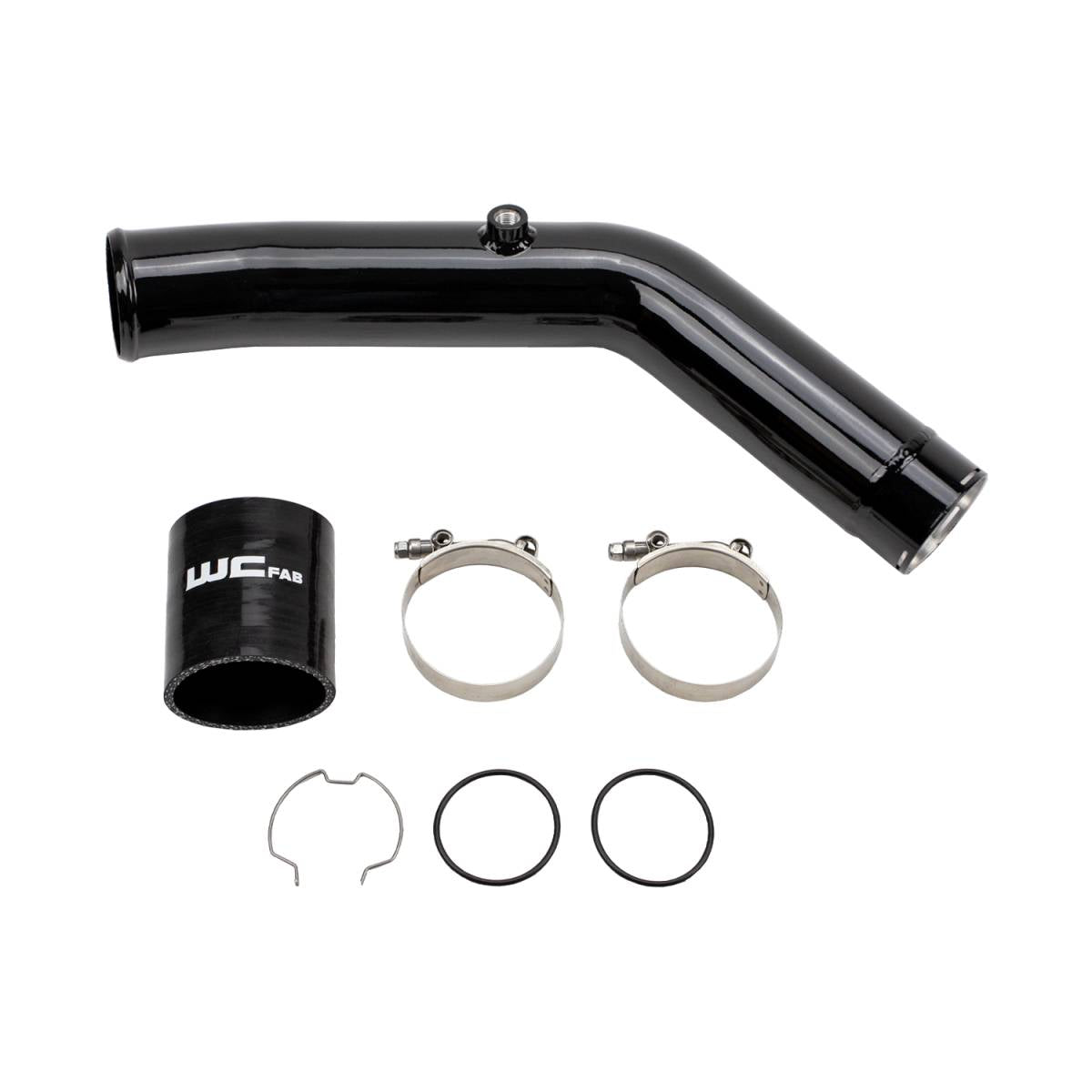

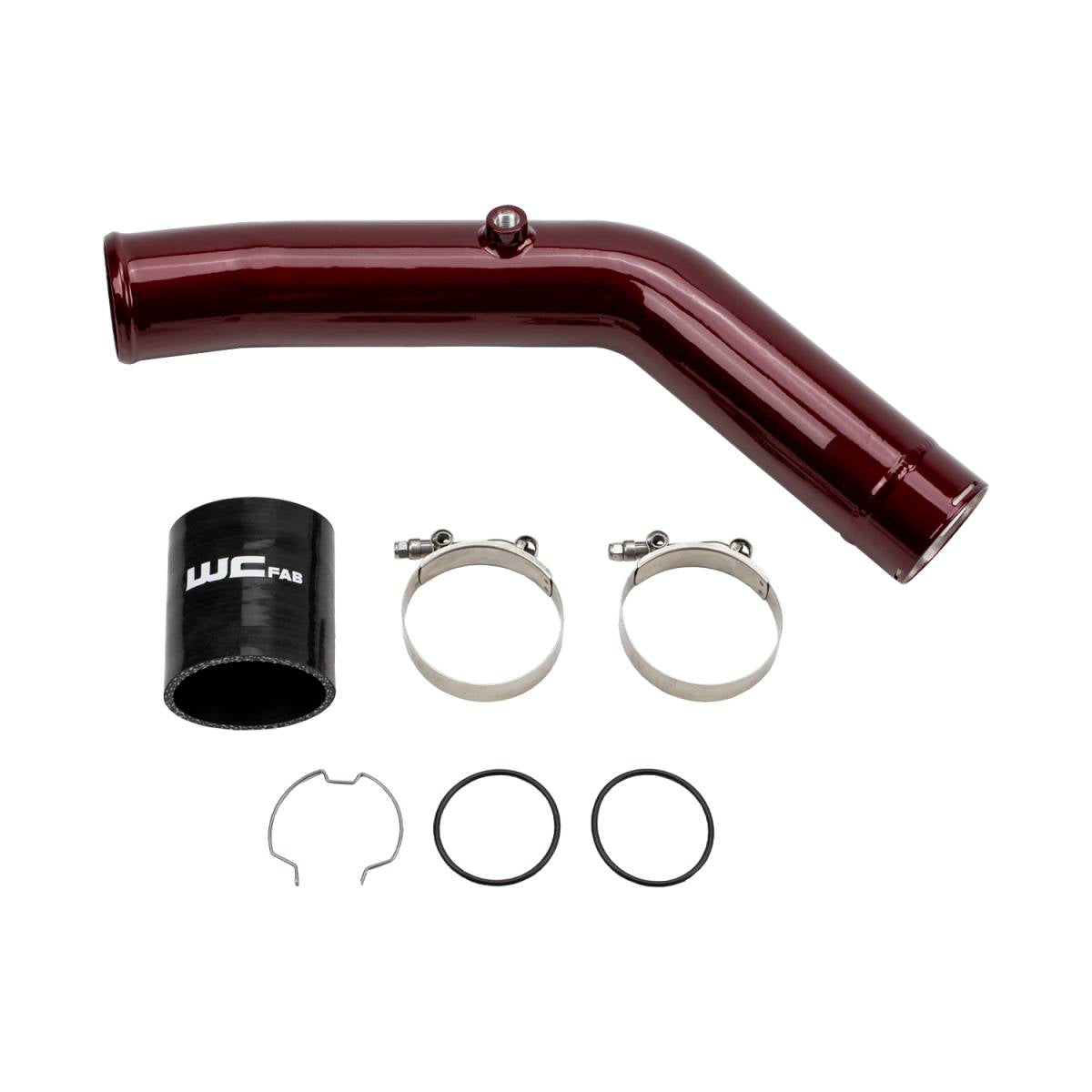

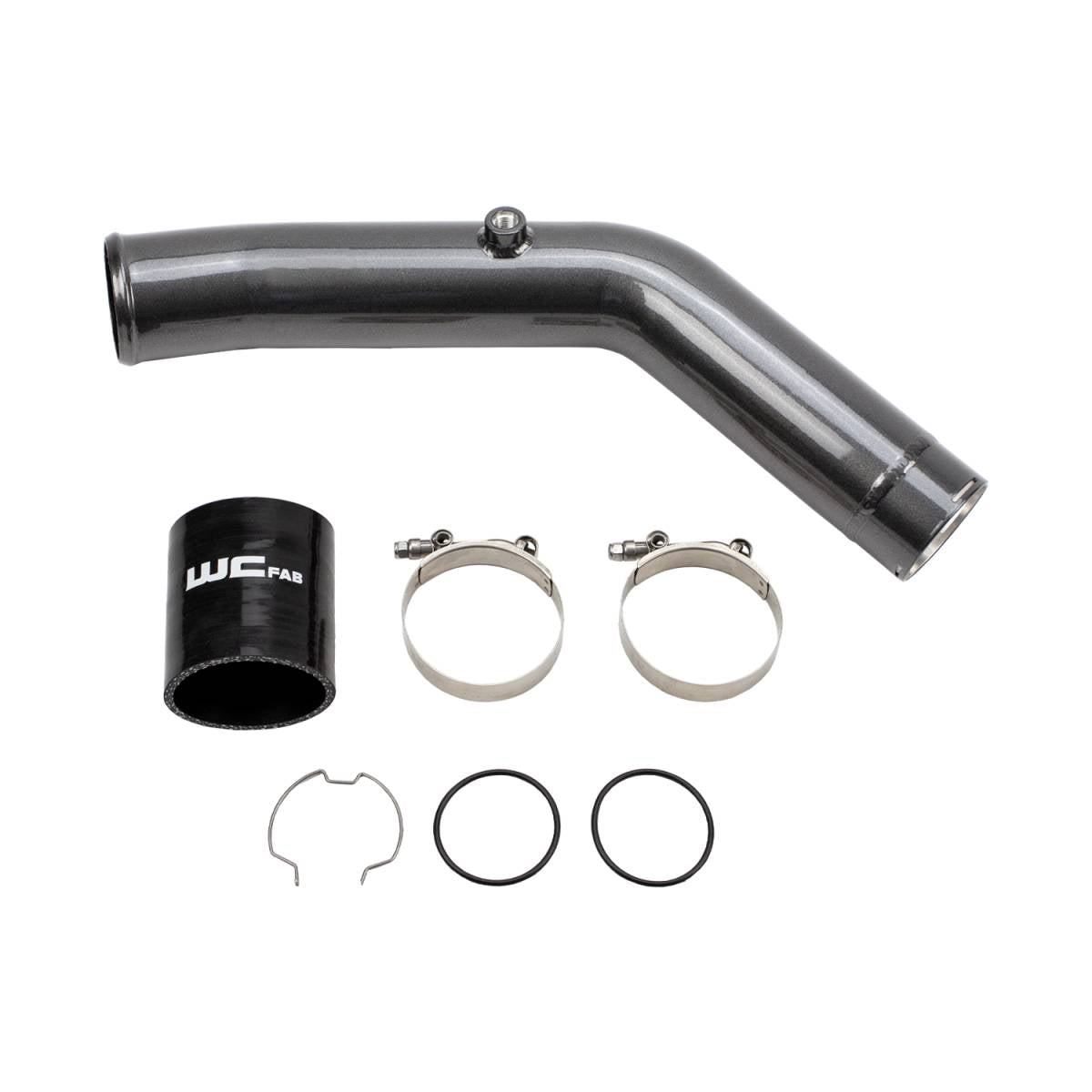

Kit Includes
- 3" hot side intercooler pipe, fabricated aluminum
- CNC machined billet aluminum flange with double O-ring seal
- Threaded bung for the temperature sensor
- Upgraded silicone boot
- Stainless steel T-bolt clamps
- O-rings and new wire retaining clip
Fits These Models
2023, 2024, 2025 and 2026 Ford Super Duty F-250 and F-350 with the 6.7L Power Stroke High Output engine.
Specifications
- Pipe: 3" diameter fabricated aluminum, replacing the 2.5" OEM design
- Flange: CNC machined billet aluminum with double O-ring seal
- Engine option: High Output (HO) only
- Shipping weight: 5.0 lbs
- Package dimensions: 8" W x 8" H x 24" L
- Finish: custom powder coat, color selected above
- Made in the USA
Key Features at a Glance
- 3" replaces the OEM 2.5" - opens the turbo outlet side.
- High Output specific - correct routing for the HO truck.
- Double O-ring billet flange - seals where the factory leaks.
- Sensor bung included - factory temp sensor reinstalls.
- New clip and O-rings - nothing reused.
- Custom powder coat finish - pick your color above.
Notes
- ⚠ High Output engines only. If your Super Duty is not an HO truck, you need WCF100316 instead — this pipe will not fit. Check your engine option before ordering, or call us at 636-429-7020 and we will confirm it with you.
- Lead time varies by color. WCFab Red, WCFab Grey, Gloss White and Gloss Black are stocked and ship in 3-5 business days. All other colors are made to order on a 10-15 business day lead time.
- The matching cold side pipe for HO trucks is WCF100295, sold separately.
FASS SKU: [ADD FASS SKU]
Manufacturer Part #: WCF100308
