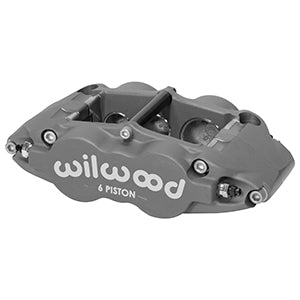

Wilwood Caliper-Forged Superlite 6R-L/H 1.62/1.12/1.12in Pistons 0....
Description
Description
The Superlite 6R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL6R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required.
| Pistons | |
|---|---|
| Piston Count | 6 |
| Piston Area (in²) | 4.04 |
| Piston Type | Stainless |
| Dust Boot | No |
| Rotor Dimensions | |
| Rotor Width (in) | 0.81 |
| Rotor Diameter(in) | 14.00 |
| Pad Dimensions | |
| Pad Area (in²) | 8.2 |
| Pad Volume (in³) | 4.9 |
| Duty Rating & Material | |
| Material | Forged Aluminium |
| Weight(Lbs) | 5.3 |
| Colors & Finish | |
| Color | Anodize |
| Finish | Type III Anodize |
| Mounting | |
|---|---|
| Mount Center(in) | 5.98 |
| Mount Position | |
| Mount Side | Left Hand |
| Mount Type | Radial |
| UPC Number | |
| UPC | 889545003130 |
SKU: WIL120-13238
